Product Description:
Our Low Dew Point Rotary Desiccant Dehumidifier is designed for applications requiring precise temperature and humidity control, especially in industries like lithium battery production, semiconductor manufacturing, cleanrooms, and pharmaceutical facilities. This dehumidifier provides reliable performance in environments where maintaining a low dew point is critical for operational efficiency and product quality.
Key Features:
Low Dew Point Control: Achieves dew points as low as -20°C (or lower), ideal for environments with strict humidity requirements.
Energy-Efficient Design: Utilizes rotary desiccant technology for superior energy efficiency compared to traditional refrigerant-based systems.
Continuous Operation: Designed for continuous operation, offering stable dehumidification performance even under fluctuating environmental conditions.
Compact & Modular: Space-saving design with a modular structure for easy installation and maintenance.
High Capacity & Performance: Capable of handling large air volumes, making it suitable for industrial applications with high humidity loads.
Customizable: Available in various sizes and configurations to meet the specific needs of your environment.
Technical Parameters:
| Type | Industrial Dehumidifier |
| Noise Level | Not Specified |
| Power Supply | 380V/3PH/50HZ |
| Supply Air Parameter | T≤36℃ RH≤8% |
| Case | Galvanized Steel Sheet, Stainless Steel Sheet |
| Coverage Area | Not Specified |
| Air Volume | 500~50,000 Cmh |
| Usage | Industrial Dehumidification |

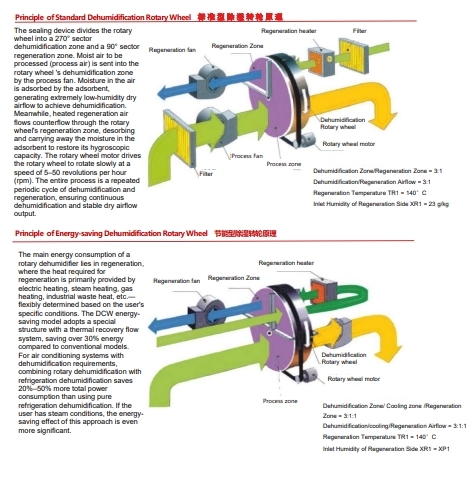

Working Principle :
When the processing air passes through the adsorption zone of desiccant rotor, the air moisture is absorbed by silica gel molecules and air becomes dry. At the same time, the regenerated hot air after heating to remove water from the silica gel molecules desorbed and send out of the rotary desiccant dehumidifier. The dehumidification wheel rotates at a preset speed to repeat air dehumidification process. Seal strip installed around the rotary runner and between the two treatment air zones ensures complete separation of treated dry air from regenerated wet air.
Customization:
Product Customization Services for the Rotary Dehumidifier:
Brand Name: JETEX
Model Number: DCW Series
Place Of Origin: Guangzhou, China
Certification: CRAA Product Certification Certificate
Minimum Order Quantity: 1
Price: The Price Depends On The Configuration

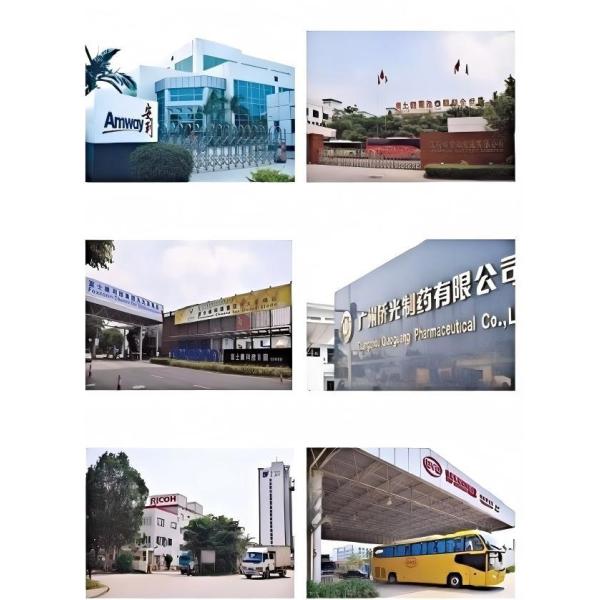

SUCCESSFUL CASES
